Node design is a crucial link in the internal force design of steel structures. In the past, when designing nodes, it was necessary to check the internal force of each steel structure member. When drawing node details, the structural engineer’s style is to look at the results file of the computational model over and over again. It’s just a small house with two floors. When faced with high-rise and super high-rise buildings with a large number of areas, it is not only inefficient, but also prone to errors and omissions.
为了告别繁重机械的体力劳动，提高节点设计时工程师的工作效率，我们利用Excel的VBA二次开发功能，编制了批量读取YJK钢结构设计内力结果的小插件。

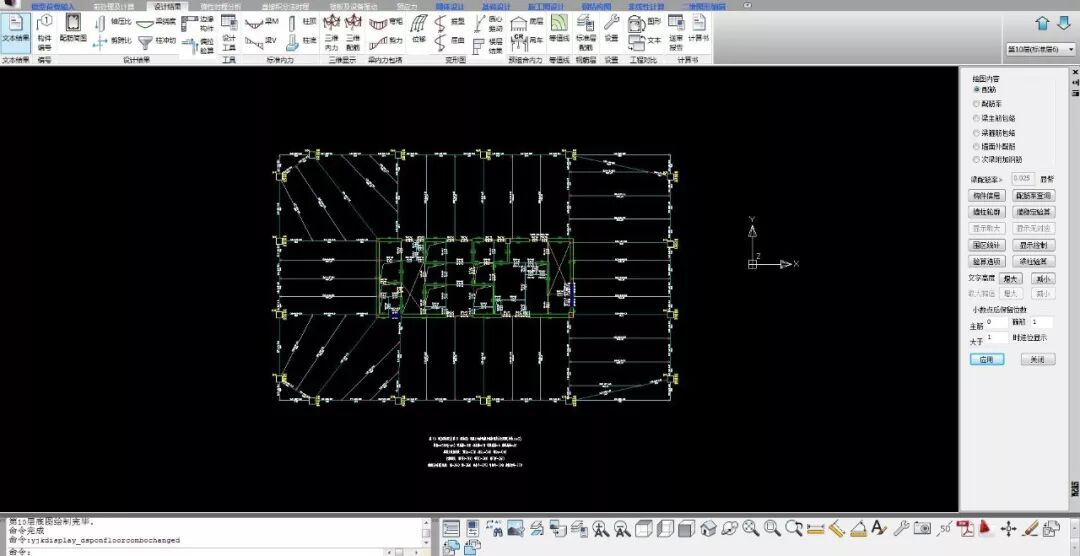

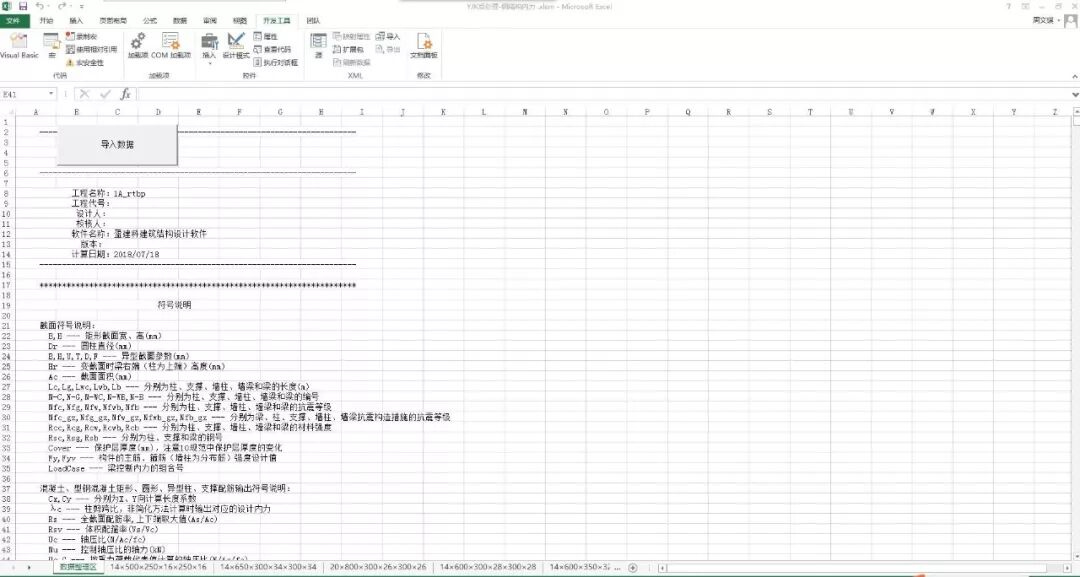

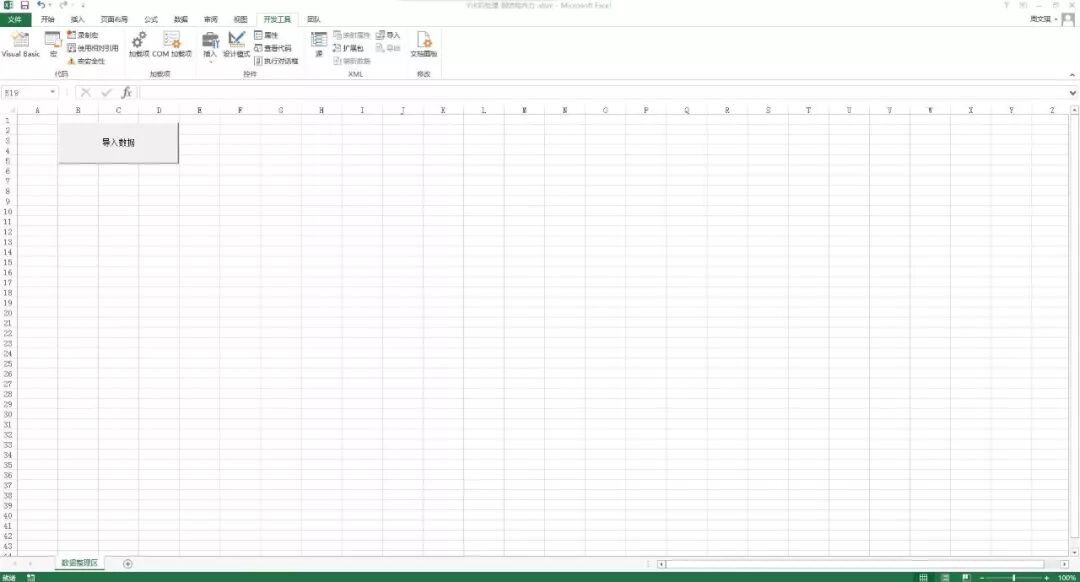

The plug-in interface is very simple:
The plug-in process is as follows:
- Click to import data

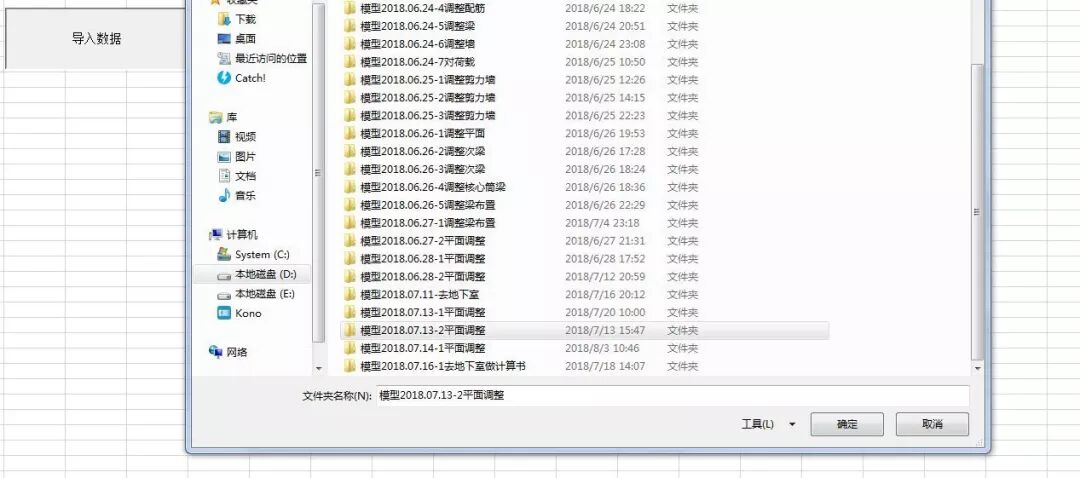

- Select the folder where the yjk model is located

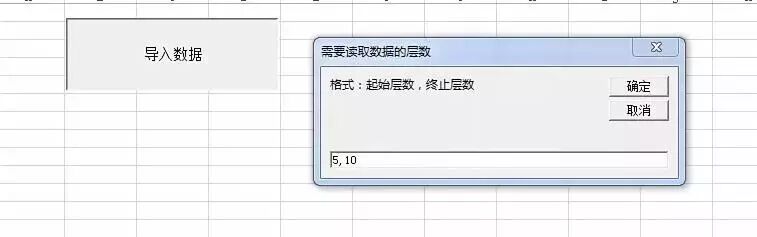

3、 输入需要读取的楼层数，如“5,10”代表读取了5-10层的设计结果
4、 生成结果

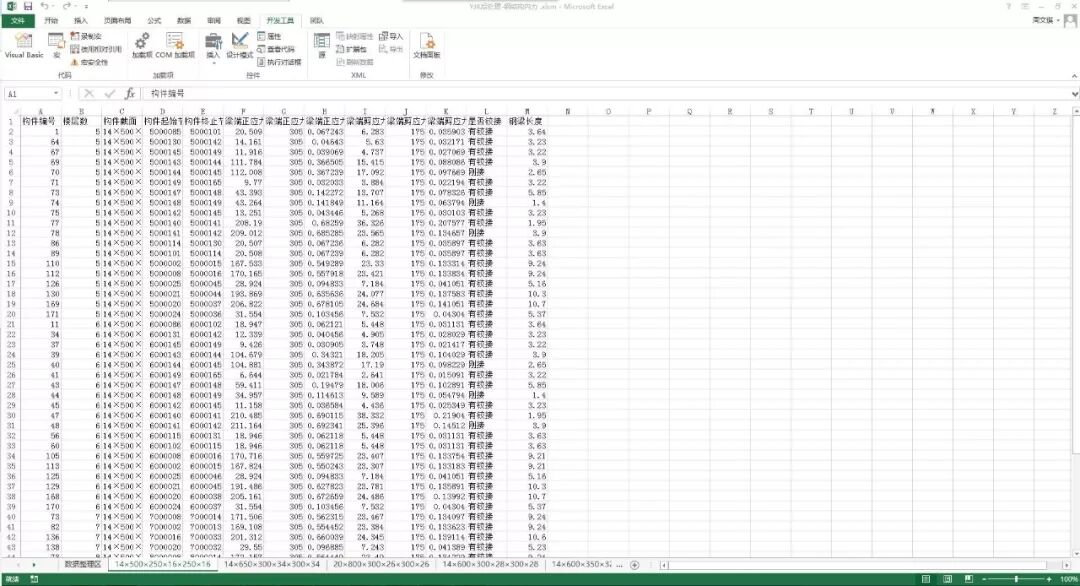

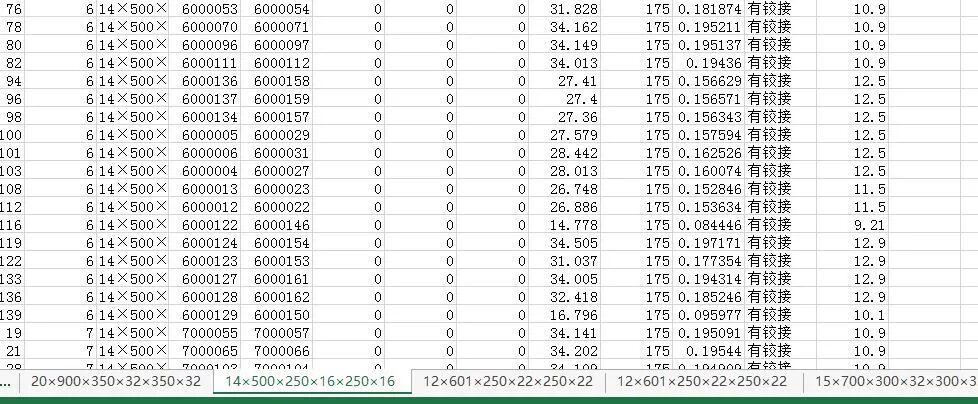

In the result file, the worksheet in the data sorting area contains all wpj files read. The rest of the worksheet uses the geometric dimensions of each beam section as the name of the worksheet. The worksheet contains data such as the component number, floor number, node number, stress ratio of normal stress and shear stress of each component. ps: This plug-in is suitable for yjk1.8.3 and 1.9.0 versions, other versions have not been tested yet. Beam section reading is only available for I-beams.
需要下载请在公众号中回复“钢结构”
